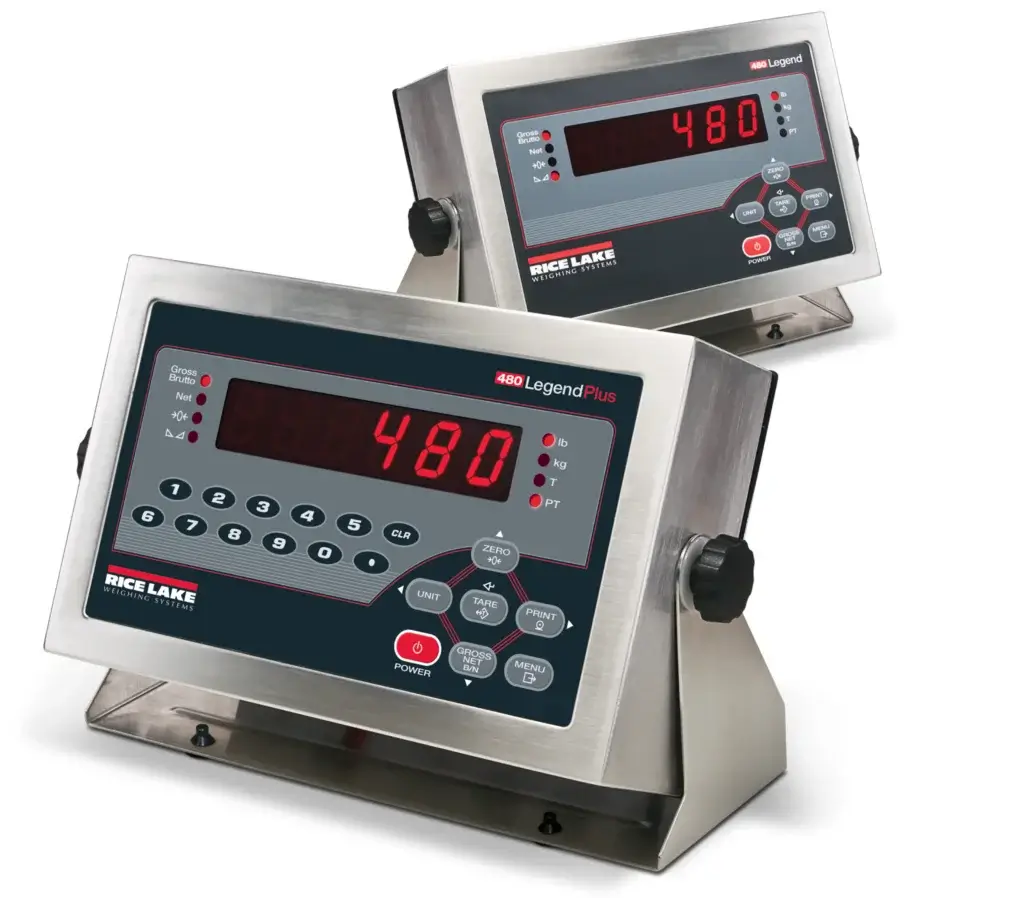

480/482 Legend® Series Digital Weight Indicator

LED display (480)
LCD backlit display (482)
Time and date, battery backed
Local/remote operation
Numeric keypad (480 Plus/482 Plus)
Keyed entries for setpoint values (480 Plus/482 Plus)
Two independent serial ports
NEMA Type 4X/IP66 stainless steel washdown enclosure
Programmable ticket formats for gross, net, accumulator and setpoints
Five continuous stream formats
Adapter filter or rolling average filter
Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
Eight setpoints, sequenced batch engine
Configurable with Revolution® software
